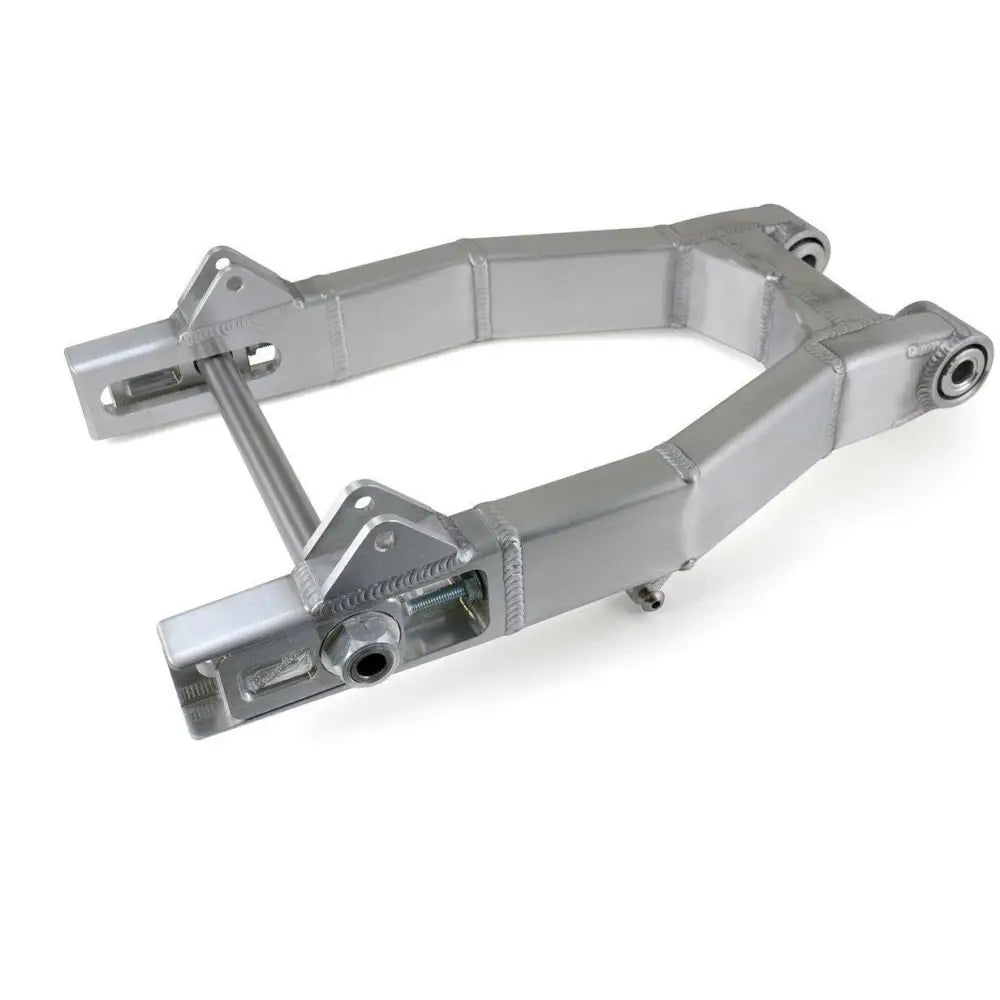

Brocks Swing Arm FXR Models

82-00 FXR Models
100% bolt-on design can be used with OEM rear wheel, caliper, spacers
and associated components
Offset pivot mount increases oil pan clearance
Offset mounting allows use of longer shocks
Designed for use in high-power, high-torque applications
Optional 28mm DOM (Drawn Over Mandrel) hollow steel axle proven to 350 ft-lbs (25mm standard)
3-position shock mounts allow flexibility in ride height (+2", +1", stock)
Compatible with shock lengths from 13" to 15"
Reversible billet aluminum axle adjusters and grade 5 steel adjuster bolts prevent axle slide (engraved with Brock's Performance logo)
Replaceable, Aurora™ PTFE® lined spherical bearings pre-installed
42% weight savings vs. OEM swingarm
Fully assembled weight as shown only 14.90 lb. (see technical for more info)
6061-T6 aluminum extrusion for dependable strength
Unequaled craftsmanship, engineering and weld quality
Interior swingarm width measures 10 7/8" at the axle
(Accepts 200 series rear tire on 6 3/4" wide rim with chain conversion)
Includes 3/4” pivot shaft bushings

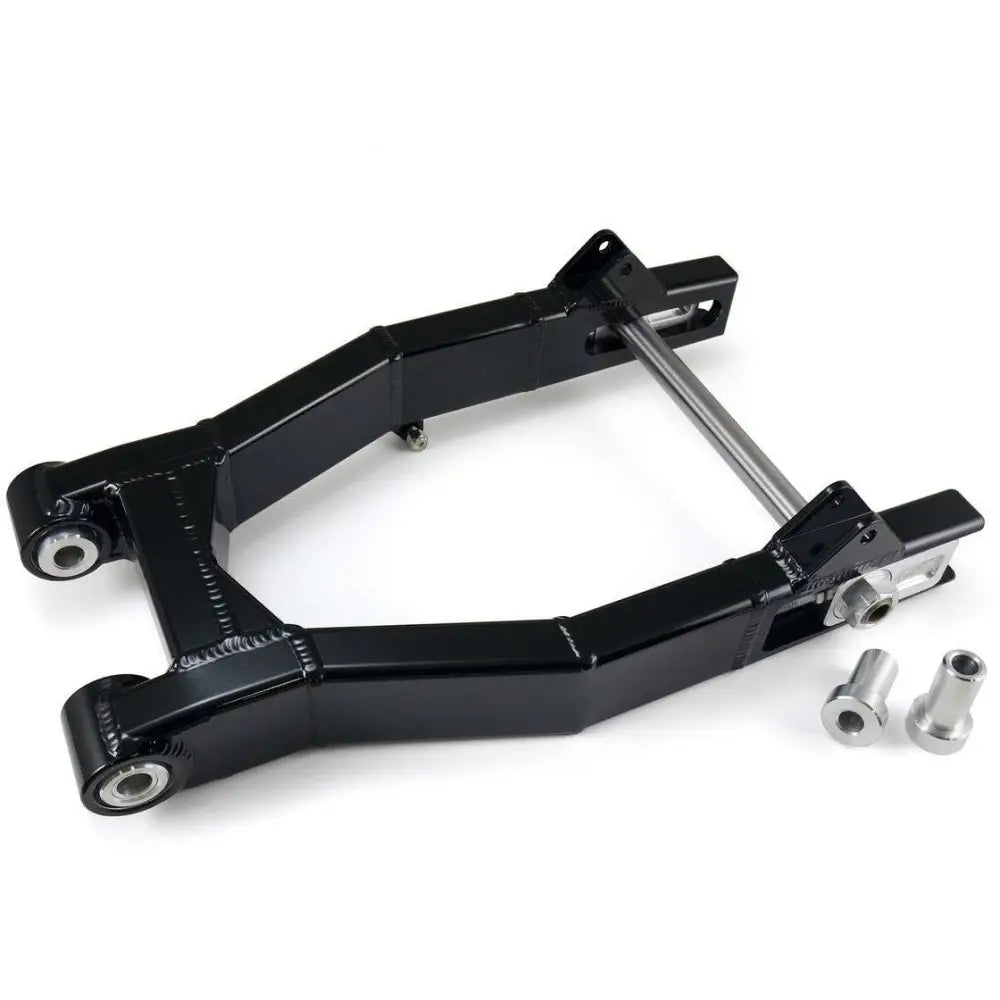

Black Polyester TGIC Powder Coated Finish (see technical for more info)
Proudly made in the USA
