RAM Mount X Grip

RAM Mounts Universal Handlebar or Brake / Clutch Reservoir X-Grip Cell Phone Cradle Kit

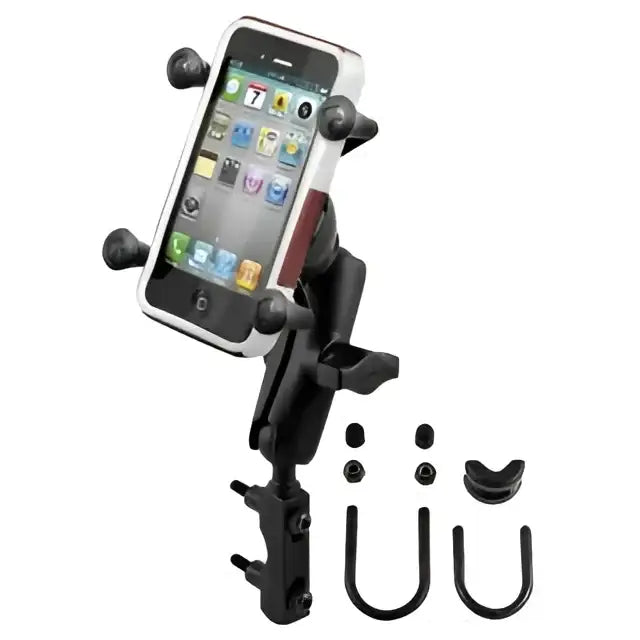

The RAM-B-174-UN7 and RAM-B-174-UN10 consists of a double socket arm, hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter and universal X-Grip™ cell phone holder. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the both ends of the socket arm; this with a twist of the arm knob, allows you can move the X-Grip™ mount to your optimum viewing position. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts.The included X-Grip™ cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip™ holder expands and contracts, allowing for a perfect custom fit of your cell phone.

Small Fitment:

• Apple iPhone Xr
• Apple iPhone Xs
• Apple iPhone X
• Apple iPhone SE
• Apple iPhone 8
• Apple iPhone 7
• Apple iPhone 6s
• LG Phoenix 3
• Google Pixel 2
• Google Pixel XL
• Motorola moto g5s plus
• Nokia 6
• Samsung Galaxy A7
• Samsung Galaxy S9 / S9+
• Samsung Galaxy J7
• Samsung Galaxy S6
• Samsung Galaxy Note 8

Large Fitment:

• Apple iPhone 6s Plus
• Apple iPhone 7 Plus
• Apple iPhone 8 Plus
• Apple iPhone Xs Max
• Google Pixel 2 XL
• HTC U Ultra
• LG V20
• Samsung Galaxy A7
• Samsung Galaxy Note 5
• Samsung Galaxy C9 Pro

The X-Grip™ holder is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Small Holder Dimensions:

• Minimum Width = 1.875"
• (Devices at 1.875" must be a minimum of 4" in height to fit into holder)
• Maximum Width = 3.25"
• Depth = 0.875"

Large Holder Dimensions:

• Minimum Width = 1.75"
• Maximum Width = 4.5"
• Depth = 0.875"

Features:

• Rustproof
• High strength composite and stainless steel construction
• Spring loaded holder expands and contracts for perfect fit of your device
• Rubber coated tips will hold device firm and stable
• Socket technology allows for multiple adjustment angles and articulation of device
• Lifetime warranty

Material:

• High Strength Composite, Rubber Tips, Powder Coated Marine Grade Aluminum and Stainless Steel Construction

Ball Size:

• 1" Rubber Ball "B" Size

Note: To see if this kit will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58".
