Carb/Carb Kits

Mikuni Easy Kit The Mikuni HSR42 and HSR45 Easy Carburetor Kit replaces stock CV carb for better performance, more power and dependability. It features a two-piece throttle slide that rolls on stainless bearings for smoother operation, excellent throttle response, and easier starting. The 42mm carburetor smoothbore Venturi creates great airflow, while the enlarged needle and seat provide extended full-throttle operation. The adjustable accelerator pump gives you the best motorcycle performance with instant throttle response at any RPM, and the light throttle return spring makes for easy pull operation. The Easy Carbutaotr Kit works with stock manifold and throttle cables, choke cable, and air cleaner. This kit includes the carb adaptor. High-flow air filter such as 400-639 recommended for maximum performance. Features: Replaces stock CV carb Stainless bearings Pre-jetted 42mm or 45mm carburetor smoothbore Enlarged needle and seat Instant throttle response at any RPM Easy pull operation Works with stock manifold and throttle cases Includes carb adaptor Use with high-flow air filter

HD 400 Harley Carburetor Kit The kit includes: Harley Carb with our Gen II idle circuit. 33" Barnett Throttle Cable to fit Harley style throttles 3 Bolt Air Filter Adapter (Universal bolt patterns) 2 Bolt Manifold adapter (will also fit stock manifolds) Metering Rod Adjustment Tool Shims to adjust spacing

HD 300 Harley Carburetor Kit The kit includes: Harley Carb with our Gen II idle circuit. 33" Barnett Throttle Cable to fit Harley style throttles 3 Bolt Air Filter Adapter (Universal bolt patterns) 2 Bolt Manifold adapter (will also fit stock manifolds) Metering Rod Adjustment Tool Shims to adjust spacing

HD 250 Harley Carburetor Kit The kit includes: Harley Carb with our Gen II idle circuit. 33" Barnett Throttle Cable to fit Harley style throttles 3 Bolt Air Filter Adapter (Universal bolt patterns) 2 Bolt Manifold adapter (will also fit stock manifolds) Metering Rod Adjustment Tool Shims to adjust spacing

CV40 Carburetor Natural or Black finish 40mm CV carburetor is for all Carb models and is an accurate reproduction of the Venerable Keihin CV carburetor. Features: Includes Two Manifold Sealed One Spigot Seal Choke Bracket for Top of Carb 9 Main Jet Installed Slow 46 Installed

S&S Super E and Super G Carb Kits Features: Super E has a 1-7/8" throat at the butterfly and a 1-9/16" venturi and is recommended for use on Big Twin or Sportster engines up to 100-cubic-inch If there is a doubt as to which carburetor to use, we suggest the 1-7/8" Super E Each carb kit includes an S&S Super E gas carburetor S&S Super E carburetors require the use of a two-cable, pull open/pull close throttle assembly

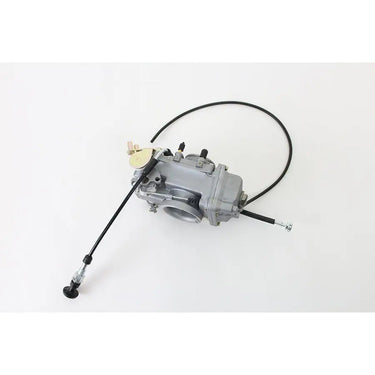

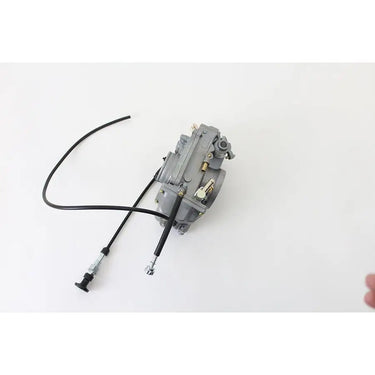

OKO 45mm Flatslide Carburetor Natural OKO 45mm flatslide carburetor incluldes an enricher idle adjustment cables air cleaner adapter ring and choke cable as shown. Features a natural finish. Includes air cleaner adapter plate. *NOTE: OKO Carburetors include choke and idle cables as shown. Twist grip and cables available separately. *NOE: carburetor must be supported on all installations either using a carburetor breather support bracket or center stud strap bracket. Fitment Harley Davidson FLST 1990 Harley Davidson FLST 1991 Harley Davidson FLST 1992 Harley Davidson FLST 1993 Harley Davidson FLST 1994 Harley Davidson FLST 1995 Harley Davidson FLST 1996 Harley Davidson FLST 1997 Harley Davidson FLST 1998 Harley Davidson FLST 1999 Harley Davidson FXD 1990 Harley Davidson FXD 1991 Harley Davidson FXD 1992 Harley Davidson FXD 1993 Harley Davidson FXD 1994 Harley Davidson FXD 1995 Harley Davidson FXD 1996 Harley Davidson FXD 1997 Harley Davidson FXD 1998 Harley Davidson FXR 1990 Harley Davidson FXR 1991 Harley Davidson FXR 1992 Harley Davidson FXR 1993 Harley Davidson FXR 1994 Harley Davidson FXST 1990 Harley Davidson FXST 1991 Harley Davidson FXST 1992 Harley Davidson FXST 1993 Harley Davidson FXST 1994 Harley Davidson FXST 1995 Harley Davidson FXST 1996 Harley Davidson FXST 1997 Harley Davidson FXST 1998 Harley Davidson FXST 1999

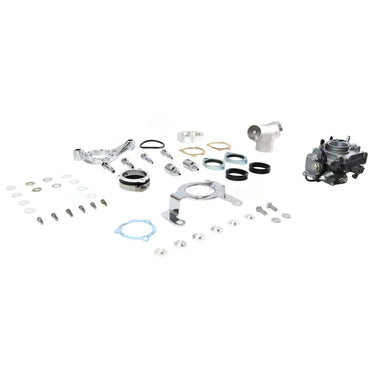

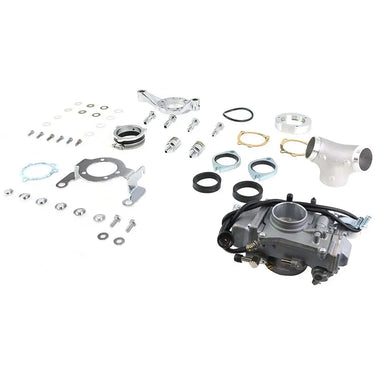

OKO 45mm Flat Side Carburetor Kit OKO 45mm flat side carburetor kit includes the carburetor manifold flange kit and chrome bracket. Twist grip and cables available separately. Fitment Harley Davidson FLST 1999 Harley Davidson FLST 2000 Harley Davidson FLST 2001 Harley Davidson FLST 2002 Harley Davidson FLST 2003 Harley Davidson FLST 2004 Harley Davidson FLST 2005 Harley Davidson FLST 2006 Harley Davidson FLST 2007 Harley Davidson FLST 2008 Harley Davidson FLST 2009 Harley Davidson FLST 2010 Harley Davidson FLST 2011 Harley Davidson FLST 2012 Harley Davidson FLST 2013 Harley Davidson FLST 2014 Harley Davidson FLST 2015 Harley Davidson FLST 2016 Harley Davidson FLST 2017 Harley Davidson FLT 1999 Harley Davidson FLT 2000 Harley Davidson FLT 2001 Harley Davidson FLT 2002 Harley Davidson FLT 2003 Harley Davidson FLT 2004 Harley Davidson FLT 2005 Harley Davidson FLT 2006 Harley Davidson FLT 2007 Harley Davidson FLT 2008 Harley Davidson FLT 2009 Harley Davidson FLT 2010 Harley Davidson FLT 2011 Harley Davidson FLT 2012 Harley Davidson FLT 2013 Harley Davidson FLT 2014 Harley Davidson FLT 2015 Harley Davidson FLT 2016 Harley Davidson FXD 1991 Harley Davidson FXD 1992 Harley Davidson FXD 1993 Harley Davidson FXD 1994 Harley Davidson FXD 1995 Harley Davidson FXD 1996 Harley Davidson FXD 1997 Harley Davidson FXD 1998 Harley Davidson FXD 1999 Harley Davidson FXD 2000 Harley Davidson FXD 2001 Harley Davidson FXD 2002 Harley Davidson FXD 2003 Harley Davidson FXD 2004 Harley Davidson FXD 2005 Harley Davidson FXD 2006 Harley Davidson FXD 2007 Harley Davidson FXD 2008 Harley Davidson FXD 2009 Harley Davidson FXD 2010 Harley Davidson FXD 2011 Harley Davidson FXD 2012 Harley Davidson FXD 2013 Harley Davidson FXD 2014 Harley Davidson FXD 2015 Harley Davidson FXD 2016 Harley Davidson FXD 2017 Harley Davidson FXST 1999 Harley Davidson FXST 2000 Harley Davidson FXST 2001 Harley Davidson FXST 2002 Harley Davidson FXST 2003 Harley Davidson FXST 2004 Harley Davidson FXST 2005 Harley Davidson FXST 2006 Harley Davidson FXST 2007 Harley Davidson FXST 2008 Harley Davidson FXST 2009 Harley Davidson FXST 2010 Harley Davidson FXST 2011 Harley Davidson FXST 2012 Harley Davidson FXST 2013 Harley Davidson FXST 2014 Harley Davidson FXST 2015 Harley Davidson FXST 2016 Harley Davidson FXST 2017

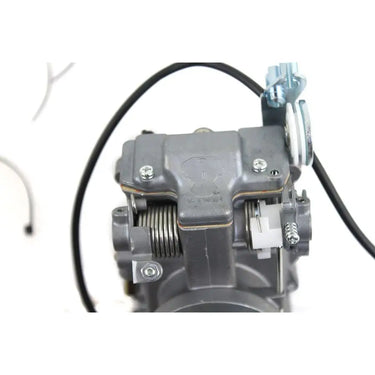

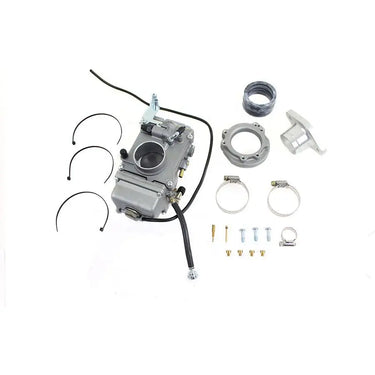

OKO 42mm Flat Side Carburetor Kit OKO 42mm flatside carburetor kit includes vertical flange adapter rubber sleeve air cleaner adapter lower carburetor stud and strap bracket. *Shown installed on a 1966 flat side Shovelhead. 42mm band type manifold included with adapter rings to fit o-ring style manifold heads. Includes 4 main jets and 2 pilot jets. The carburetoer outer flange adapter is a molded rubber sleeve with a CV pattern alloy flange. Requires dual cable push-pull operation. Twist grip and cables available separately. Fitment Harley Davidson FL 1966 Harley Davidson FL 1967 Harley Davidson FL 1968 Harley Davidson FL 1969 Harley Davidson FL 1970 Harley Davidson FL 1971 Harley Davidson FL 1972 Harley Davidson FL 1973 Harley Davidson FL 1974 Harley Davidson FL 1975 Harley Davidson FL 1976 Harley Davidson FL 1977 Harley Davidson FL 1978 Harley Davidson FL 1979 Harley Davidson FL 1980 Harley Davidson FL 1981 Harley Davidson FL 1982 Harley Davidson FL 1983 Harley Davidson FL 1984 Harley Davidson Fx 1971 Harley Davidson Fx 1972 Harley Davidson Fx 1973 Harley Davidson Fx 1974 Harley Davidson Fx 1975 Harley Davidson Fx 1976 Harley Davidson Fx 1977 Harley Davidson Fx 1978 Harley Davidson Fx 1979 Harley Davidson Fx 1980 Harley Davidson Fx 1981 Harley Davidson Fx 1982 Harley Davidson Fx 1983 Harley Davidson Fx 1984 Harley Davidson XL 1966 Harley Davidson XL 1967 Harley Davidson XL 1968 Harley Davidson XL 1969 Harley Davidson XL 1970 Harley Davidson XL 1971 Harley Davidson XL 1972 Harley Davidson XL 1973 Harley Davidson XL 1974 Harley Davidson XL 1975 Harley Davidson XL 1976 Harley Davidson XL 1977 Harley Davidson XL 1978 Harley Davidson XL 1979 Harley Davidson XL 1980 Harley Davidson XL 1981 Harley Davidson XL 1982 Harley Davidson XL 1983 Harley Davidson XL 1984

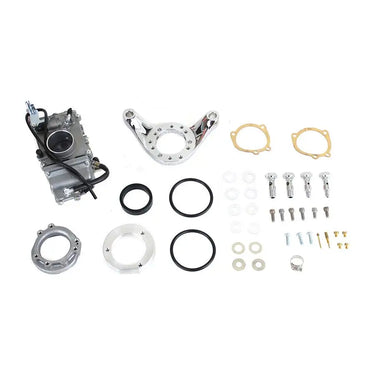

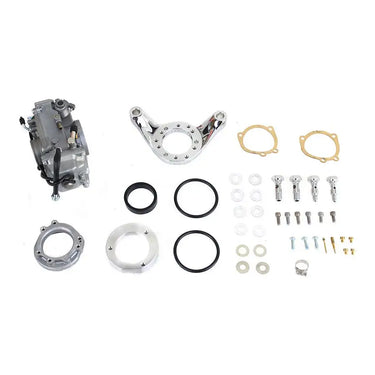

OKO 42mm Flatslide Carburetor Kit OKO 42mm carburetor kit is the flatslide style and includes the manifold adapter flange rubber seal and carburetor mount bracket. Mounts to existing 2 hole manifold. Includes breather bolts for the mount bracket. *NOTE: Must order spigot adapter and requires dual cable push-pull operation. Twist grip and cables available separately. Fitment Harley Davidson FLST 1993 Harley Davidson FLST 1994 Harley Davidson FLST 1995 Harley Davidson FLST 1996 Harley Davidson FLST 1997 Harley Davidson FLST 1998 Harley Davidson FLST 1999 Harley Davidson FLST 2000 Harley Davidson FLST 2001 Harley Davidson FLST 2002 Harley Davidson FLST 2003 Harley Davidson FLST 2004 Harley Davidson FLST 2005 Harley Davidson FLST 2006 Harley Davidson FLST 2007 Harley Davidson FLST 2008 Harley Davidson FLST 2009 Harley Davidson FLST 2010 Harley Davidson FLST 2011 Harley Davidson FLST 2012 Harley Davidson FLST 2013 Harley Davidson FLST 2014 Harley Davidson FLST 2015 Harley Davidson FLST 2016 Harley Davidson FLST 2017 Harley Davidson FXST 1993 Harley Davidson FXST 1994 Harley Davidson FXST 1995 Harley Davidson FXST 1996 Harley Davidson FXST 1997 Harley Davidson FXST 1998 Harley Davidson FXST 1999 Harley Davidson FXST 2000 Harley Davidson FXST 2001 Harley Davidson FXST 2002 Harley Davidson FXST 2003 Harley Davidson FXST 2004 Harley Davidson FXST 2005 Harley Davidson FXST 2006 Harley Davidson FXST 2007 Harley Davidson FXST 2008 Harley Davidson FXST 2009 Harley Davidson FXST 2010 Harley Davidson FXST 2011 Harley Davidson FXST 2012 Harley Davidson FXST 2013 Harley Davidson FXST 2014 Harley Davidson FXST 2015 Harley Davidson FXST 2016 Harley Davidson FXST 2017
