Suspension Components

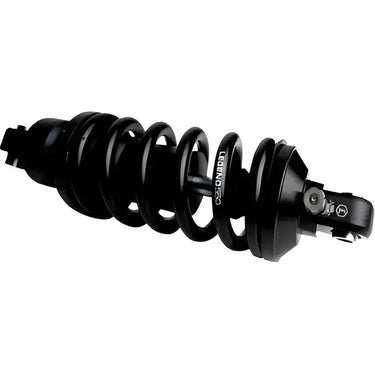

Legend Revo-A Milwaukee 8 Softail All new Revo-A coil design for the M-Eight Softail Available in 12.5", 13", and 13.5", standard or heavy-duty applications Revo-A coil spring provides superior ride comfort, improved performance, and increased resistance to bottoming for all day comfort Provides optimum rebound performance that can be fine-tuned for any given rider weight, personal ride preference, or personal riding style Adjustable preload for rider set up, also allows for minimal pre-load adjustment when changing between rider's weights and loads Seven external knob adjustments allow fine-tuning of rebound utilizing needle valve technology to adapt to your riding style Low friction sleeve bearings both top and bottom for ease of installation, this also allows the shock to float in its mount and avoid shock bind Hard anodized, machined billet aluminum 46 mm mono tube utilizes a lightweight high flow piston design for improved fluid flow resulting in unmatched handling and bike control Hard chromed shaft is 14% larger for increased strength High quality chrome-silicon spring for consistent spring rate for the life of the motorcycle Internal floating nitrogen piston ensures consistent damping performance Deflective disc valving self-adjusts to frequency and ensures controlled performance Legend's durable and low friction sealing system and sliding bearings provide improved performance and feel Available in Black Type III hard coat anodize Easy installation and adjustment replacing the stock shock and mounts with original OEM hardware Sold as Mono Shock (1 shock only) Preload wrench included Designed for optimum performance with the Legend Axeo front suspension Lifetime Warranty Made by hand in Sturgis, SD, USA P65 WARNING: Cancer and Reproductive Harm.

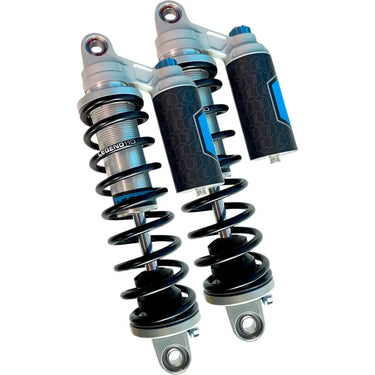

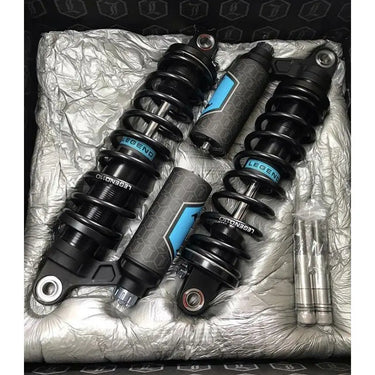

Legend Suspension-ARC FXD  LEGEND REVO-ARC PIGGYBACK DYNA COIL SUSPENSION Available in gold or clear Type III hard-coat anodize REVO coils provide improved plush ride-quality, control and resistance to bottoming-out REVO's extended coil length has larger "sweet spot" without increasing overall shock length Allows minimal pre-load adjustment by hand when changing between riders' weights or loads Adjusts by hand, no tools needed Available in 13" and 14", standard or heavy-duty applications Easy installation and alignment, provided by spherical bearings on both top and bottom 35mm monotube construction Deflective disc valve stacks Balanced/matched piston and base-valve design specific for these motorcycle applications Low-friction sealing system and PTFE-based sliding bearings for improved performance and feel Seven external knob adjustments allow fine-tuning of rebound Seven external knob adjustments allow fine-tuning of compression Provides optimum rebound and compression performance for any given rider weight, personal ride-quality preference or personal riding style Nitrogen gas bladder design allows ultra-fast response and stiction-free movement Light to heavy riders can fine-tune ride preference Aggressive to casual riding styles can tune to desired quality or personal preference Made in the U.S.A. NOTE: Heavy-duty applications are recommended for 250 lb.+ rider and passenger total weight. Also consider heavy-duty if the majority of your riding is 2-up, stunt riding or aggressive riding style.

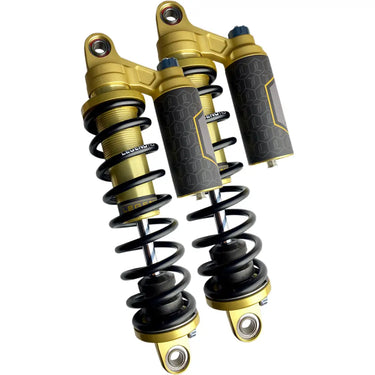

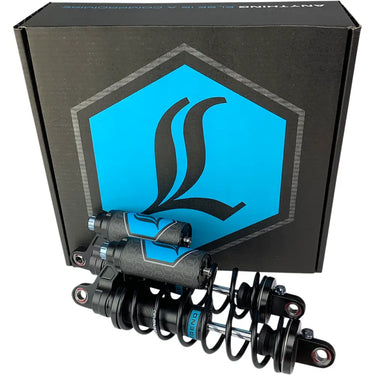

Legend Suspension-ARC FXR LEGEND REVO-ARC PIGGYBACK FXR COIL SUSPENSION Available in black, gold or clear Type III hard-coat anodize REVO coils provide improved plush ride-quality, control and resistance to bottoming-out REVO's extended coil length has larger "sweet spot" without increasing overall shock length Allows minimal pre-load adjustment by hand when changing between riders' weights or loads Adjusts by hand, no tools needed Available in 13" and 14", standard or heavy-duty applications Easy installation and alignment, provided by spherical bearings on both top and bottom 35mm monotube construction Deflective disc valve stacks Balanced/matched piston and base-valve design specific for these motorcycle applications Low-friction sealing system and PTFE-based sliding bearings for improved performance and feel Seven external knob adjustments allow fine-tuning of rebound Seven external knob adjustments allow fine-tuning of compression Provides optimum rebound and compression performance for any given rider weight, personal ride-quality preference or personal riding style Nitrogen gas bladder design allows ultra-fast response and stiction-free movement Light to heavy riders can fine-tune ride preference Aggressive to casual riding styles can tune to desired quality or personal preference Made in the U.S.A. NOTE: Heavy-duty applications are recommended for 250 lb.+ rider and passenger total weight. Also consider heavy-duty if the majority of your riding is 2-up, stunt riding or aggressive riding style.

Legend Suspension-ARC Sportster  LEGEND REVO-ARC PIGGYBACK XL COIL SUSPENSION Available in gold or clear Type III hard-coat anodize REVO coils provide improved plush ride-quality, control and resistance to bottoming-out REVO's extended coil length has larger "sweet spot" without increasing overall shock length Allows minimal pre-load adjustment by hand when changing between riders' weights or loads Adjusts by hand, no tools needed Available in 13" and 14", standard or heavy-duty applications Easy installation and alignment, provided by spherical bearings on both top and bottom 35mm monotube construction Deflective disc valve stacks Balanced/matched piston and base-valve design specific for these motorcycle applications Low-friction sealing system and PTFE-based sliding bearings for improved performance and feel Seven external knob adjustments allow fine-tuning of rebound Seven external knob adjustments allow fine-tuning of compression Provides optimum rebound and compression performance for any given rider weight, personal ride-quality preference or personal riding style Nitrogen gas bladder design allows ultra-fast response and stiction-free movement Light to heavy riders can fine-tune ride preference Aggressive to casual riding styles can tune to desired quality or personal preference NOTE: Heavy-duty applications are recommended for 250 lb.+ rider and passenger total weight. Also consider heavy-duty if the majority of your riding is 2-up, stunt riding or aggressive riding style.

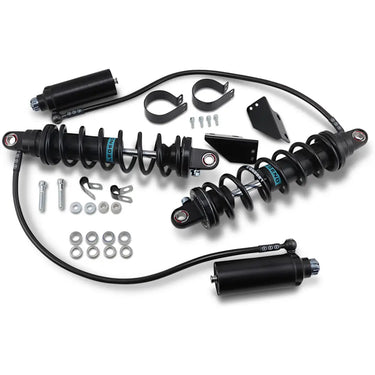

Legend Revo-Arc Touring Features: LEGEND REVO-ARC REMOTE RESERVOIR FL COIL SUSPENSION Available in Black Type III hard-coat anodize Legend's Touring specific spring rates produce superior ride quality and performance REVO coils provide improved plush ride quality, control and resistance to bottoming-out REVO's extended coil length has larger "sweet spot" without increasing overall shock length Requires minimal pre-load adjustment by hand when changing between riders' weights or loads Adjusts by hand, no tools needed Available in 13" and 14", standard or heavy-duty applications Easy installation and alignment, provided by spherical bearings on both top and bottom 35mm monotube construction Deflective disc valve stacks Balanced/matched piston and base-valve design specific for these motorcycle applications Low friction sealing system and PTFE based sliding bearings for improved performance and feel Seven external knob adjustments allow fine-tuning of rebound Seven external knob adjustments allow fine-tuning of compression Provides optimum rebound and compression performance for any given rider weight, personal ride quality preference or personal riding style Nitrogen gas bladder design allows ultra-fast response and stiction-free movement Light to heavy riders can fine-tune ride preference Aggressive to casual riding styles can tune to desired quality or personal preference Made in the U.S.A. NOTE: Heavy-duty applications are recommended for 500 lb. + rider and passenger total weight.

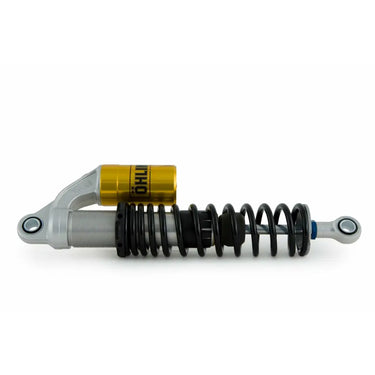

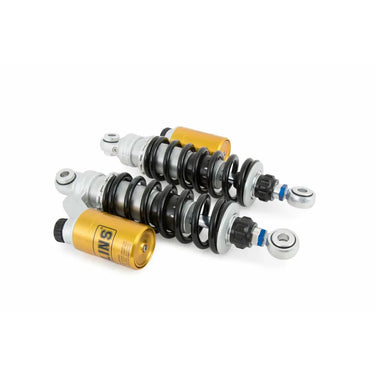

Ohlins HD FXR and Sportster The Öhlins STX36D and STX36P are a classic monotube design, featuring all the classical Öhlins qualities delivering top notch ride comfort and performance for your bike. Available in dividing piston or piggyback versions, depending on application, it can also be specified with a number of different damping adjustment options with or without length adjustment. They are designed for Harley-Davidson and custom bikes with twin shock absorbers. Features: Well proven monotube design Designed for comfort and rideability New black design Each application tested and tailor made to suit Wide range of spring rates are available Dividing piston gas pressurized system (STX36D) *** All Ohlins Products Have A 2 Week Minimum Lead Time ***

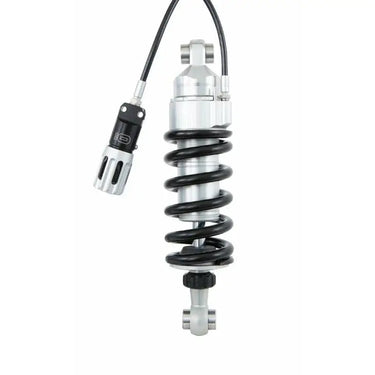

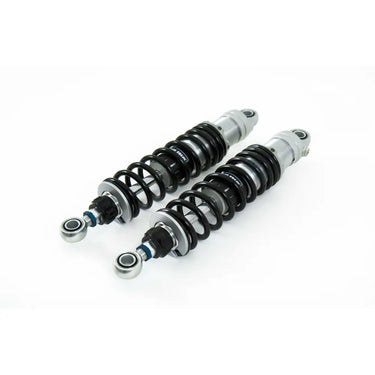

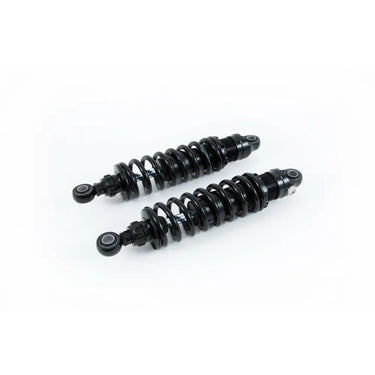

Ohlins HD Touring Models The Öhlins STX36D and STX36P are a classic monotube design, featuring all the classical Öhlins qualities delivering top notch ride comfort and performance for your bike. Available in dividing piston or piggyback versions, depending on application, it can also be specified with a number of different damping adjustment options with or without length adjustment. They are designed for Harley-Davidson and custom bikes with twin shock absorbers. HD022 - 300mm HD039 - 311mm HD044 -328 +5/-5mm HD159 - 329 +5/-5mm HD357 - 336 +5/-5mm HD772 - 329 +5/-5mm HD775 - 311mm HD776 - 310mm HD777 - 311mm Features: Well proven monotube design Designed for comfort and rideability New black design Each application tested and tailor made to suit Wide range of spring rates are available Dividing piston gas pressurized system (STX36D) *** All Ohlins Products Have A 2 Week Minimum Lead Time ***

Ohlins HD Dyna Models The Öhlins STX36D and STX36P are a classic monotube design, featuring all the classical Öhlins qualities delivering top notch ride comfort and performance for your bike. Available in dividing piston or piggyback versions, depending on application, it can also be specified with a number of different damping adjustment options with or without length adjustment. They are designed for Harley-Davidson and custom bikes with twin shock absorbers. HD215 340 +5/-5mm HD216 305mm HD219 305 +5/-5mm HD220 340mm HD761 305mm HD762 305 +10/-10 HD763 305 +10/-10 HD764 336 +10/-10 HD764LE 336 +10/-10 HD 765 336 +10/-10 HD816 325 +5/-5 HD817 305mm Features: Well proven monotube design Designed for comfort and rideability New black design Each application tested and tailor made to suit Wide range of spring rates are available Dividing piston gas pressurized system (STX36D) *** All Ohlins Products Have A 2 Week Minimum Lead Time ***

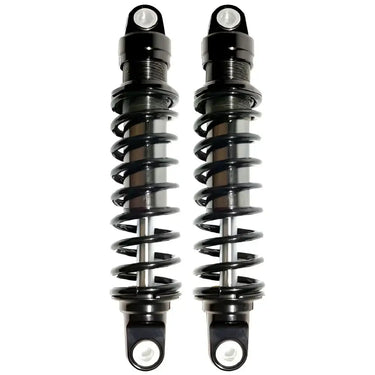

Racetech GS3 Shocks G3-S Custom Series Dual Shocks can be built to fit any standard H-D or custom frame.The IFP (Internal Floating Piston) design is the common choice of Baggers and bikes with limited space Features: Gold Valves provide a plush feel with increased bottoming resistance. Personalized valving setup Custom Hi-Performance Spring with rate selected for the rider Choose from IFP, Piggy Back Choice of Damping Adjustments and Ride Height Adjustment Billet aluminum Ultra Slick Suspension Fluid Premium Heim Bearings Extremely effective compression and rebound adjusters for varying track conditions Oversize shock shaft These designs can be built to any length at no additional charge. Color options are available as well. Rebound adjustment is optional. A plush, controlled, and comfortable ride is guaranteed!

Racetech GS3 Shocks G3-S Custom Series Dual Shocks can be built to fit any standard H-D or custom frame.The IFP (Internal Floating Piston) design is the common choice of Baggers and bikes with limited space. Features: Gold Valves provide a plush feel with increased bottoming resistance. Personalized valving setup Custom Hi-Performance Spring with rate selected for the rider Choose from IFP, Piggy Back Choice of Damping Adjustments and Ride Height Adjustment Billet aluminum Ultra Slick Suspension Fluid Premium Heim Bearings Extremely effective compression and rebound adjusters for varying track conditions Oversize shock shaft These designs can be built to any length at no additional charge. Color options are available as well. Rebound adjustment is optional. A plush, controlled, and comfortable ride is guaranteed!

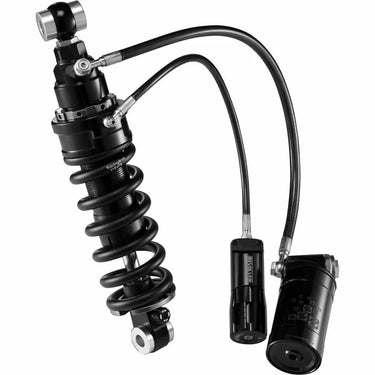

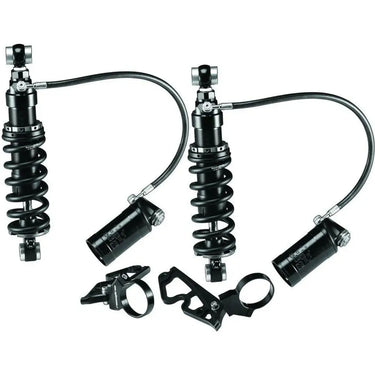

RacingBros HLR Shocks With Remote Reservoirs For Harley The RacingBros HLR Shocks With Remote Reservoirs feature full adjustability with preload, compression and rebound adjusters to easily adapt to all riding styles and conditions. These performance shocks with race proven "Speed Adaptive Valving (SAV)" damping system is sure to provide a superior ride and quality, regardless of road conditions. Features: Speed Adaptive Valving (SAV) Internal floating piston design for consistent performance Components made from A7075 forged aluminum then precision CNC machined Progressive rate springs High and low speed compression adjustable Preload and compression adjusters 1/2" height adjustable Sold as a pair Revolver option has remote preload adjuster for Softail Models Note: Remote reservoir mounts go in place of docking kits which prevents the use of other accessories.

Racing Bros Remote Reservoir Shocks The remote reservoir rear shocks by RacingBro's feature full adjustability with preload, compression and rebound adjusters to easily adapt to all riding styles and conditions. Whether you choose a stock length or change it up with some tall boys for a curb hopper club style, these performance shocks with race proven "Speed Adaptive Valving" will provide you with an ultimate ride. Features: Components made from A7075 forged aluminum then precision CNC machined Internal floating piston design for consistent performance Progressive rate springs with tapered ends to avoid bowing and bottoming Speed Adaptive Valving (SAV) Sold as a pair

Bitubo Front Cartridges Significantly increased riding comfort and adjustability Provides additional front end support during hard braking No modifications to the original system components are required Rebound and compression adjustment system allows fast and easy adjustment Direct OEM replacement (allows refitting of the original suspension at any time) Includes set-up manual, installation instructions (including recommended oil viscosity and levels), and adjustment tools Adjustable features include: Hydraulic spring preload (10 clicks) Hydraulic compression (20 clicks) Hydraulic rebound (20 clicks) Manual length (1.18" / 30 mm) Click here to view Installation Instructions
