Jims M8 Oil Pump Alignment Tool

Jims M8 Oil Pump Alignment Tool

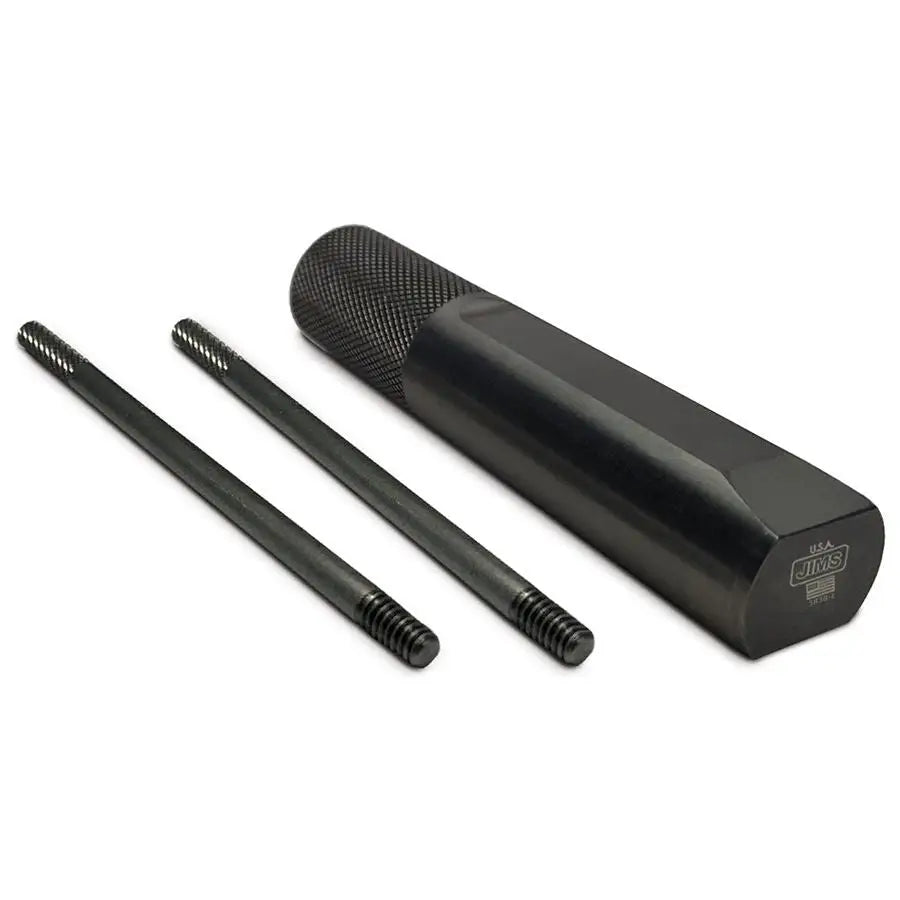

Jims oil pump alignment tool is the perfect aid for the technician to either assemble as individual components with supplied studs or as an assembly with the alignment dowel.
For the cam support plate along with oil pump gerotors and pump cover to perfectly align with the pinion shaft flat all while properly sealing the oil pump o-ring in the crankcase can be a challenge for one set of hands.

Fitment

Harley Davidson FLST 2018
Harley Davidson FLST 2019
Harley Davidson FLST 2020
Harley Davidson FLST 2021
Harley Davidson FLST 2022
Harley Davidson FLST 2023
Harley Davidson FLST 2024
Harley Davidson FXST 2019
Harley Davidson FXST 2020
Harley Davidson FXST 2021
Harley Davidson FXST 2022
Harley Davidson FXST 2023
Harley Davidson FXST 2024
