Wiseco High-Performance Piston Kits
from $381.08
$407.76
Wiseco High-Performance Piston Kits
HIGH-PERFORMANCE FORGED PISTON KITS
Wiseco's high-tech manufacturing ensures greater operating strength and lower expansion at high temperatures
Kits include forged pistons with ArmorGlide™ coated skirts, rings, retainer clips, chrome piston pins
Twin Cam pistons have ArmorPlating which improves ring seal, eliminates ring micro-welding, and improves the piston's ability to defend against detonation damage
Piston kits are available with X-Ring package (.062 top ring, .062 compression ring and .158 oil ring), XC-Ring packages (.039 top ring, .062 compression ring, .158 oil ring) or VM-rings (1.2mm steel, positive twist, gas nitrided top ring, 1.2mm cast iron, taper under-hook scraper ring and 2.0mm three-piece, flex-vent oil ring with steel chrome-faced rails); VM-rings, X-Rings and XC-Rings will not interchange
X- and XC-rings are identified by PART # in the application chart; X-Ring PART #s end with an "X" and XC-Ring PART #s end with an "XC"
103" kits require cylinder boring; 110" kit requires big-bore cylinders and case boring; X-Ring package (.0472" top ring, .0472" compression ring and .118" oil ring); recalibration required
Pistons are made in the U.S.A.
NOTE: Replacement rings include rings for one piston only.
WARNING: Wiseco pistons that use VM-rings can only be fitted with Wiseco VM-rings; Wiseco pistons that use XC-rings can only be fitted with Wiseco XC-rings.

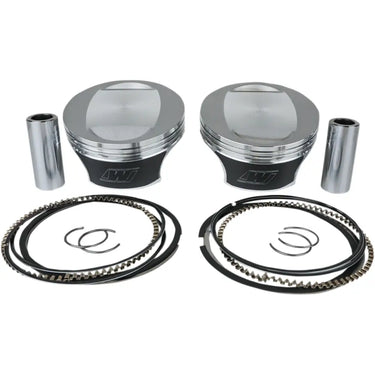

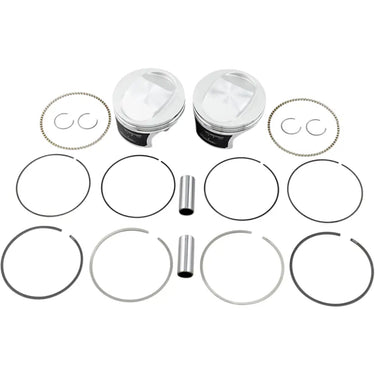

Wiseco Tracker Series Pistons
from $215.95
$246.68
Wiseco Tracker Series Pistons
Features:
TRACKER™? SERIES PISTON KITS
Forged piston crown with generous valve pockets for big valves and cams
Precision-fit rings selected for each application for ultimate sealing
Force-fed pin oiling provides enhanced lubrication of the piston pin
Pressure seal groove reduces ring lifting and power loss
ArmorGlide®?? skirt coating reduces friction, providing quieter operation and improving scuff resistance
Valued-packaged with two pistons, rings, piston pins and circlips
Made in the U.S.A.


Black Edition M8 Pistons
from $489.27
Black Edition M8 Pistons
Features:
BLACK EDITION PISTON KITS FOR M-EIGHT
Feature ArmorX™? piston coating for superior protection in extreme conditions and reduced wear
ArmorFit™? skirt coating auto-adjusts to the cylinder wall so there's no need to measure clearance; provides smooth, quiet, trouble-free operation
Dome design for improved flame travel to maximize air/fuel burn efficiency
High compression for added power
Superfinish piston pin reduces friction and improves scuff resistance
Enhanced pin oiling for improved lubrication and reduced friction
Augmented ring land details improve ring seal and function
Dedicated rings for precise fit, improved compression and oil control
Fit OEM and Screamin' Eagle cylinder heads
Kit includes two pistons, rings, piston pins and circlips
Made in the U.S.A.


S&S High Compression Piston Kits
from $499.95
S&S High Compression Piston Kits
Features:
Significantly increase performance
Provides more horsepower without sacrificing torque
10.6:1 compression ratio
Simple EFI tuning with three calibration downloads for Dynojet® Power Vision® tuner

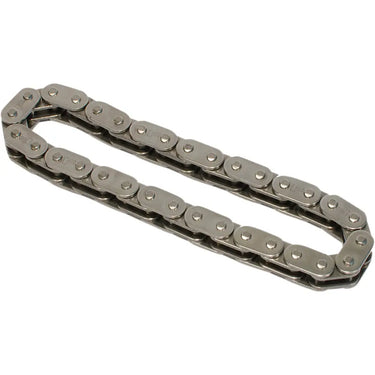

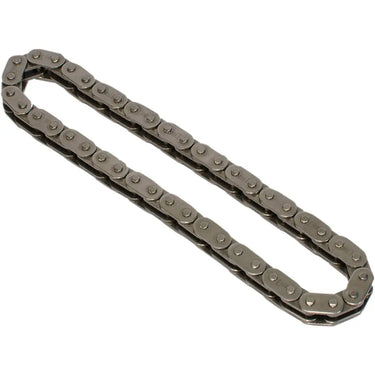

Feuling Cam Chains
$39.95
Feuling Cam Chains
Feuling:
Stock replacement chains
Could be used for Conversion Cams
Made in the U.S.A.

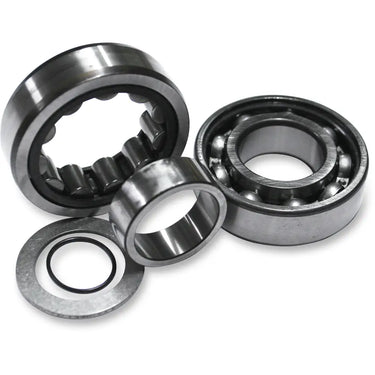

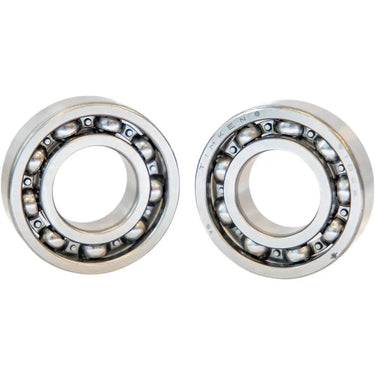

Feuling Outer Cam Plate Bearings
from $49.95
Outer camshaft/camplate bearings are single-row deep groove bearings manufactured by Timken® Fafnir® and are a necessity where tough applications and conditions apply
Manufactured by Koyo® Torrington®
Made in the U.S.A.

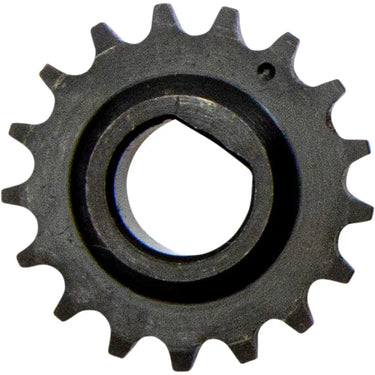

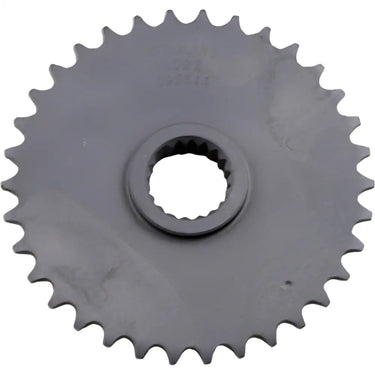

Feuling Cam Sprocket
from $59.95
Machined steel, stock replacement roller chain drive sprockets fit 07-17 Twin Cam engines as direct replacements and work on early 99-06 engines when upgrading to the hydraulic cam chain tensioners using the roller chain
Made in the U.S.A.

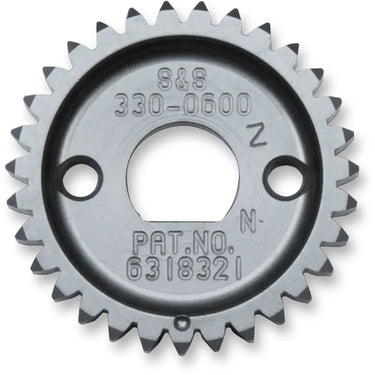

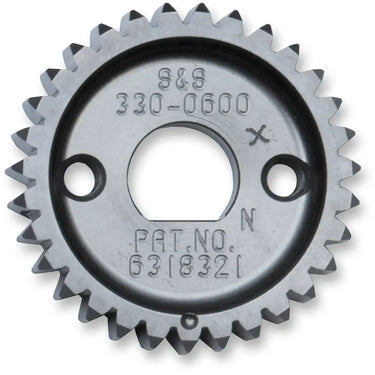

S&S Two Gear Kits M8
from $119.95
$131.95
S&S Two Gear Kits M8
Features:
A two-gear set is required for gear-driven cams that do not come with secondary cam gears; includes outer cam drive gear, pinion drive gear and mounting hardware
Due to the inherent characteristics of gear drives, you may experience more valve train noise with gear driven cams; oversized and undersized pinion gears are available to help achieve correct gear lash (sold separately)
Made in the U.S.A.
It is the installer's responsibility to check all clearances and follow all procedures in the S&S instructions and Harley-Davidson manual.

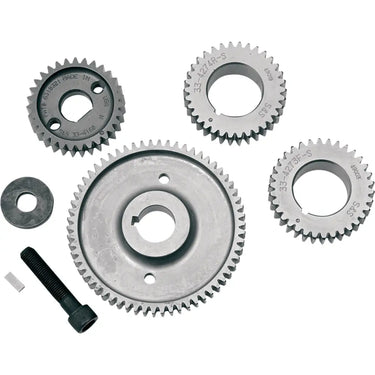

S&S Gear Drive Sprocket Kit Twin Cam
from $634.95
A four-gear set is required for gear-driven cams that do not come with secondary cam gears; includes two secondary cam gears, outer cam drive gear, outer pinion drive gear and mounting hardware
Due to the inherent characteristics of gear drives, you may experience more valve train noise with gear driven cams; oversized and undersized gears are available to help achieve correct gear lash
Made in the U.S.A.
It is the installer's responsibility to check all clearances and follow all procedures in the S&S instructions and Harley-Davidson manual.


S&S M8 Cylinders
$948.95
S&S M8 Cylinders
Features:
- Bolt on Cylinder Set
- Bored slightly under nominal size and are not honed
- Sold in Pairs
- Made in the USA

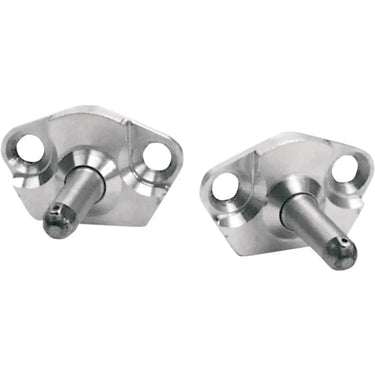

Jims Piston Oiling Jet Kit
$234.95
Jims Piston Oiling Jet Kit
Features:
Modified to handle upgraded stroker flywheels stroke
Works with all stock and high-performance flywheel assemblies
Made in the U.S.A.

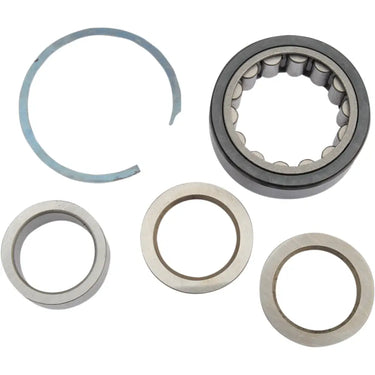

Eastern Lefty Bearing Kit
from $60.95
Eastern Lefty Bearing Kit
Features:
Kit Includes 2 OEM #8972 Thrust Washers
1 OEM #24605-07 Bearing
1 OEM #35114-02 Retaining Ring

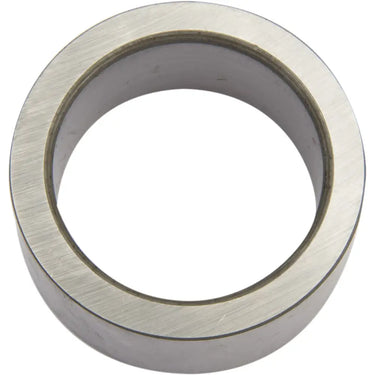

1 Bearing Race
Bearing and Race available separate

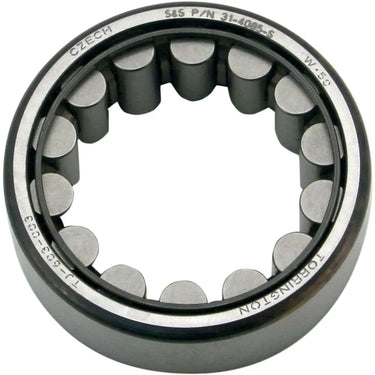

S&S Pinion Shaft Bearing
$105.95
S&S Pinion Shaft Bearing
Features:
For All 00-02 Twin Cam B Models (Right Side)
For All 03-07 Twin Cam Models (Right and Left Side)
Replaces OEM #24604-00D.
Made in the U.S.A.

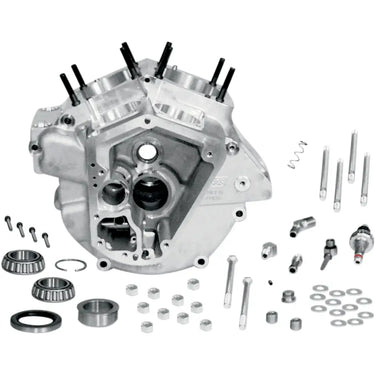

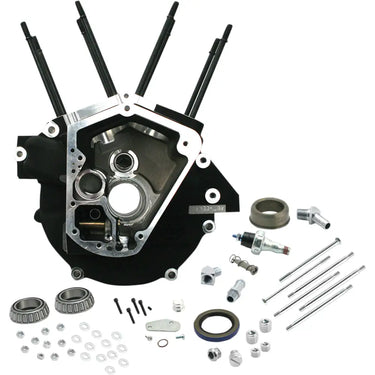

S&S Early Cases
from $1,569.95
$1,601.95
S&S Early Cases
Features:
Cast from A356 T-6 heat-treated aluminum alloy
Include crankcase bolts, washers and nuts, cylinder mounting studs, timing hole plug, magnetic drain plug, assorted breather and oil line fittings, top end oil screen spring and plug, sprocket shaft Timken® bearing assembly, oil seal, pinion shaft main bearing race, cam needle bearing assembly, oil pump shaft bushings and installation instructions
Use Timken style sprocket shaft bearings and 1958 and later pinion bearings (will not accept 1957 and earlier flywheels)
Bearing races are all line honed and breather cavity is precision machined to optimize breather timing for maximum oil scavenging
Machined for 3.4375" cylinders and tapped 1/4"-20 for gear covers, oil pump, tappet guides, timer and timer advance
65 models use 65 alloy inner primary
Drilled for 5/16" generator mounting bolts
63-65 models with outside oil lines must use oil port to the rear of the tappet block or oil port in gear cover and use custom oil lines
Generator crankcase gear kit (includes circuit breaker drive gear, idler gear, circuit breaker gear and shims) and shafts must be purchased separately
Made in the U.S.A.

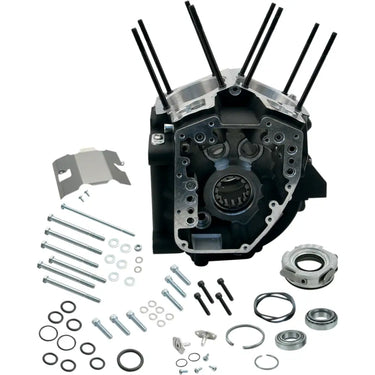

S&S Twin Cam Engine Cases
from $1,658.95
S&S Twin Cam Engine Cases
Features:
Replacement Twin Cam "A" engine cases for stock H-D chassis only (carb and EFI)
Feature greater overall strength than stock crankcases
Strong, dependable Timken®-style sprocket shaft bearings
Clearanced for strokes up to and including 5"
All passages between the crankcase cam support plate are O-ring sealed
Compatible with most stock components
Cam chest has clearance for up to .675" lift cams
Include S&S crankcase breather reed valve designed to eliminate oil carry-over and oil scavenging problems
Rear motor mount bolts directly to the stock transmission; fully compatible with the stock primary, charging system, and other stock components
Made in the U.S.A.
This project requires a skilled technician. It is the responsibility of the person assembling the parts to check all clearances and assembly specifications.
